Drilling with inserts from Lothmann THE MULTIFUNCTIONAL FULL DRILL FOR AN EFFECTIVE WORKING PROCESS.

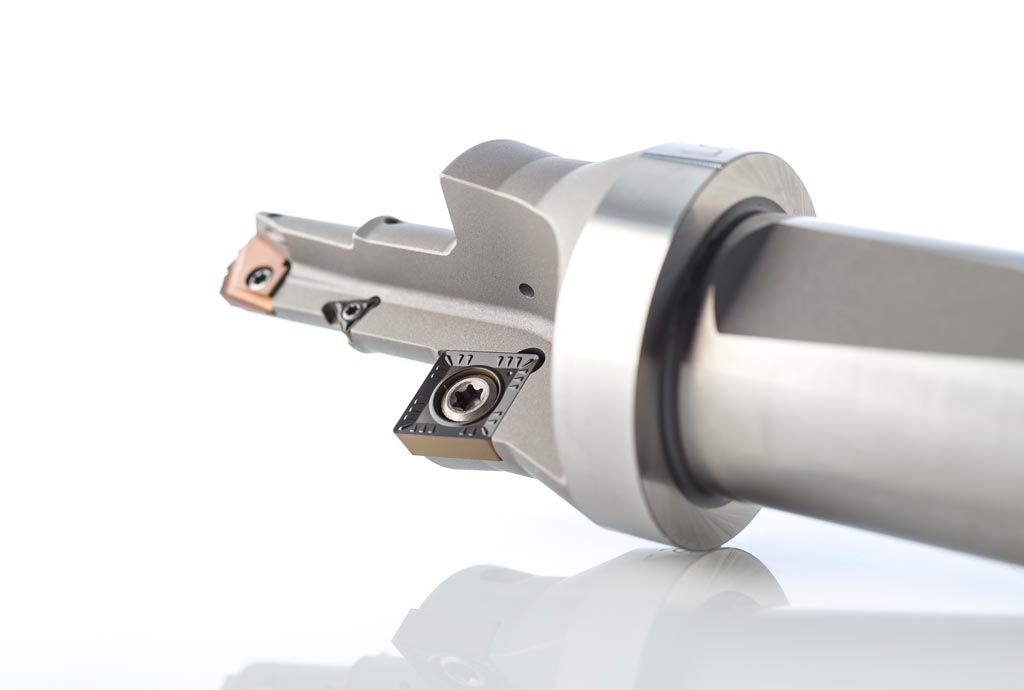

A solid drill enables the drilling of holes with a diameter of 12 to 65 mm and a drilling depth of five times the diameter. For this purpose, the drill is equipped with an outer and inner cutting edge. It is often used for pre-drilling in solid material.

The accuracy of the hole is +-0.1 to +-0.2 mm in diameter, depending on the cutting inserts and material. The solid drill can machine various materials such as grey cast iron, nodular cast iron, steel and non-ferrous metals. The machines are mainly used in the field of machine and vehicle construction.

Drilling with inserts from Lothmann

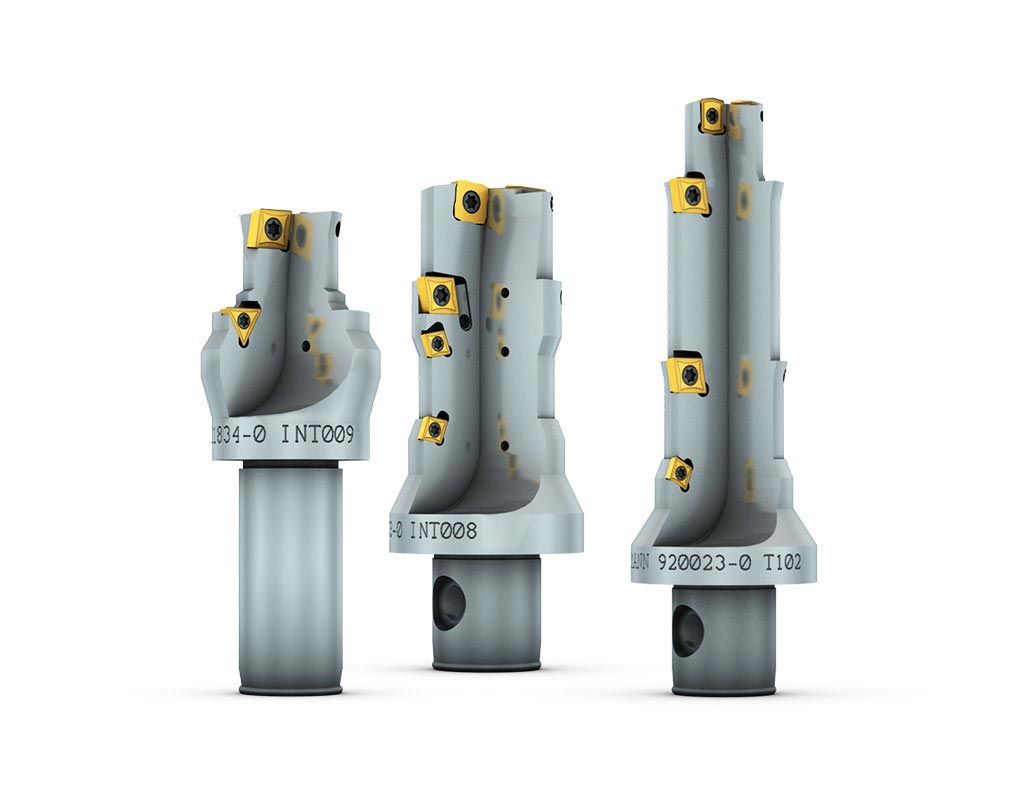

The company Lothmann Werkzeugtechnik GmbH & Co. KG manufactures solid drills that are equipped with indexable inserts. A major advantage is the individual addition of further cutting inserts, which, in addition to solid drilling, also enable additional countersinking, chamfering and reboring. The special chip geometries of the inserts also make it possible to achieve the shortest possible chips.

The inserts can be purchased from various suppliers such as Sandvik, Seco, Walter or Komet. Since these are ISO inserts, they can be replaced worldwide and, above all, at low cost after wear. At Lothmann, the shank can also be customised, e.g. a solid drill with Sandvik inserts and Komet ABS-compatible shank.

Your advantages at one look

  • One hundred percent dimensional control
  • Delivery within 3 weeks from receipt of order
  • Functional guarantee
  • Inexpensive custom-made products
  • Enables multiple operations with only one tool
  • No regrinding due to the use of ISO inserts

The company Lothmann Werkzeugtechnik GmbH & Co. KG has been exclusively developing and manufacturing special tools for drilling (solid drilling, boring, boring out, chamfering, countersinking and many more) to order since the mid-1980s. To date, more than 40,000 tools have been produced in over 15,000 different variants.

Order your solid drill from Lothmann now

Inquire now
